Multi-Color Chocolate Moulding Line

Name: MULTI-COLOR Chocolate Moulding Line
Brand: Alpy Group

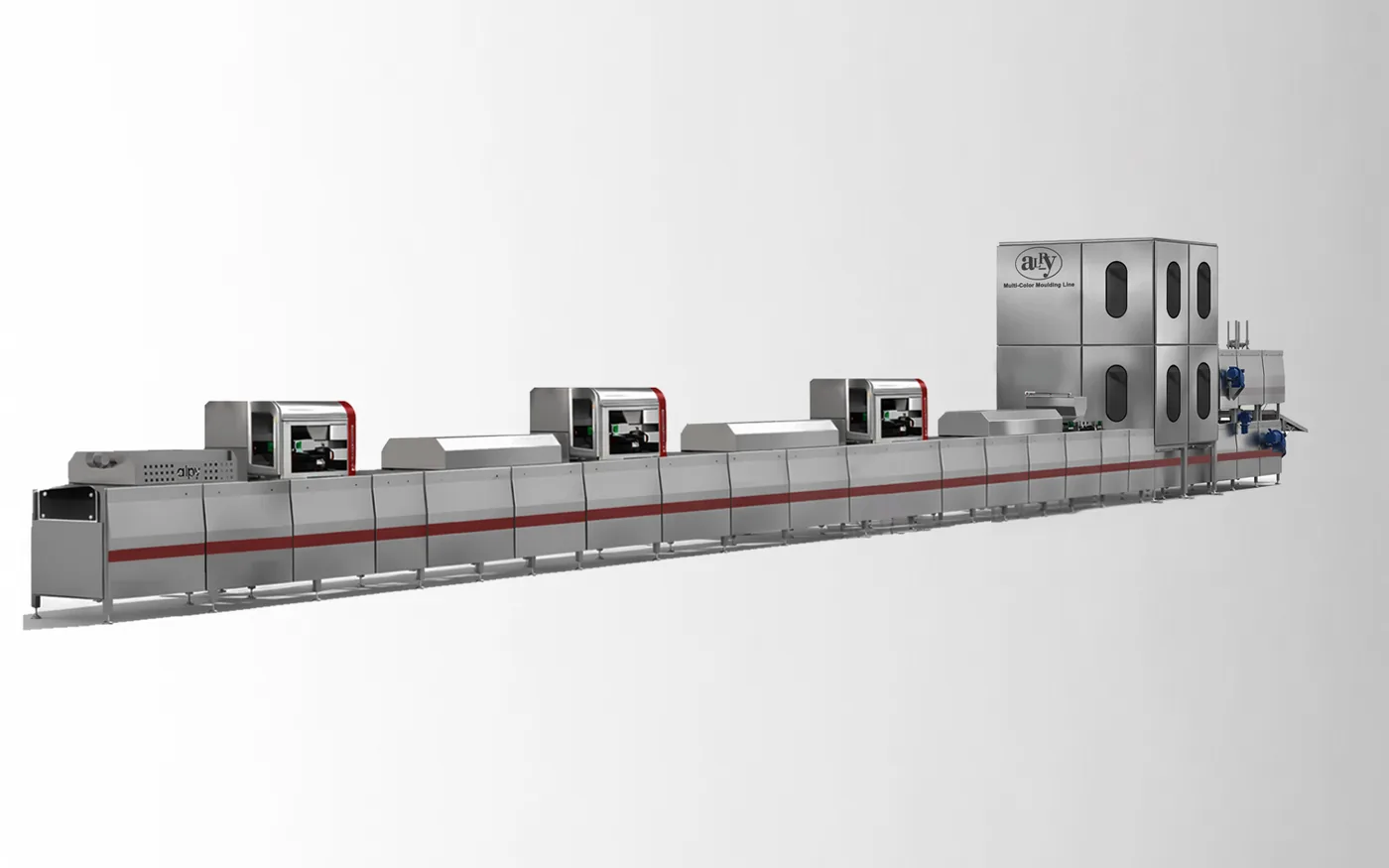

MULTI-COLOR Chocolate Moulding Line

The ALPY Multi-Color Chocolate Moulding Line is specially engineered for the production of premium multi-color chocolate products featuring intricate decorations and complex 3D designs.

Specifications

Model	Capacity	Note
Multi-Color Moulding Line	6–8 moulds/min	Moulds: 470×200×30 / 600×205×30 / 800×245×30 mm

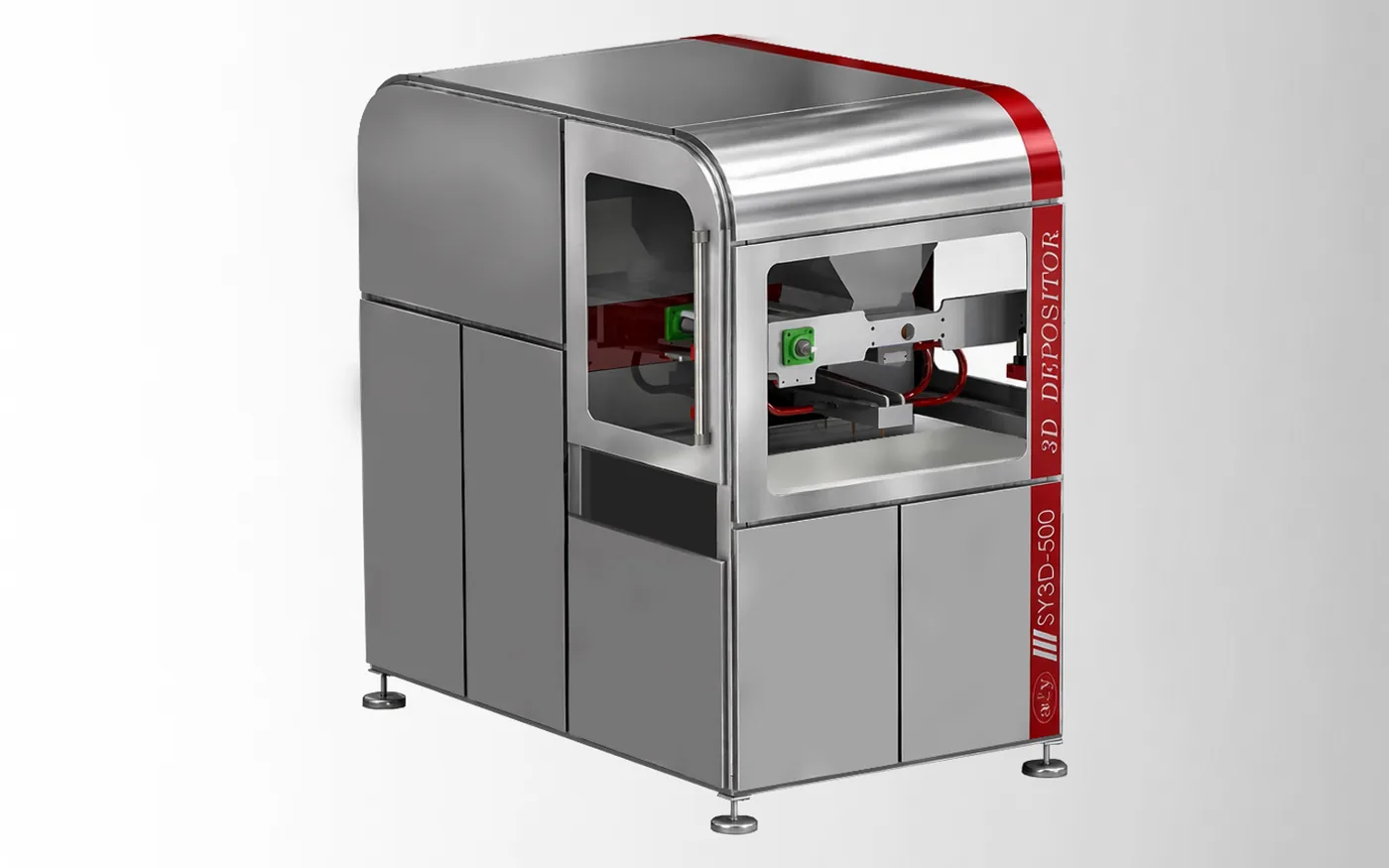

The ALPY Figure Depositor is powered by an advanced CNC-based motion control system, delivering exceptional decorating precision and repeatability.

The artwork of each figure is converted into G-code using dedicated ALPY software. These G-code files are then transferred directly to the PLC, enabling the depositor to reproduce highly detailed chocolate decorations with CNC-level accuracy, synchronized motion control, and outstanding repeatability.

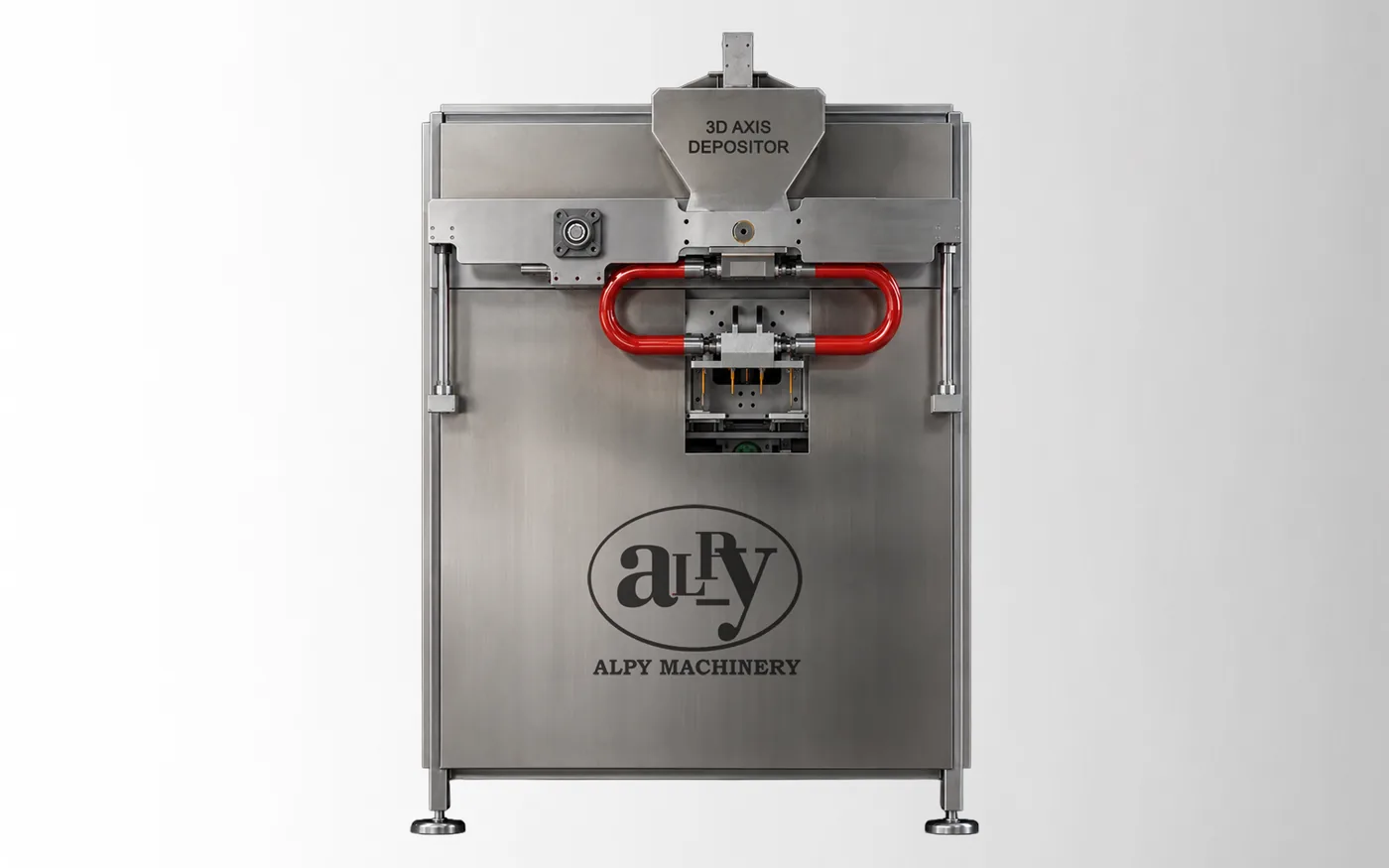

3D Axis Depositor

The ALPY Single-Color 3D Axis Depositor is engineered for maximum mechanical efficiency and decorating precision. The system performs chocolate decoration exclusively through the movement of the depositing head, while specially heated flexible hoses ensure a continuous and stable chocolate flow.

The custom-designed heated hoses are protected by spring supports, preventing hose deformation or cross-sectional restriction during movement. This guarantees uninterrupted product flow at the nominal capacity throughout the decorating process.

Powered by a fully servo-controlled architecture, the 3D Figure Depositor executes highly precise X-, Y- and Z-axis movements to deposit single-color chocolate accurately into predefined positions within the mould.

Standard process stations

The Multi-Color Chocolate Moulding Line, configured with its standard process stations, includes the following units:

Mould Heating Tunnel
3D Figure Depositor with Vibration
Horizontal Local Cooling Tunnel
Chocolate Depositor with Vibration
Elevator-Type Cooling Tunnel
Automatic Demoulding Unit
Empty Mould Inspection Station

Optional process stations

The following optional process stations can be integrated to meet specific production requirements:

Additional 3D Figure Depositor with Vibration and Horizontal Cooling Tunnel
One-Shot Depositor with Vibration
Biscuit Feeding System with Pressing Unit
Stick Feeding Unit

Frequently Asked Questions

How are figure decorations programmed?

The artwork of each figure is converted into G-code using dedicated ALPY software and transferred directly to the PLC. The depositor then follows the programmed tool path automatically, reproducing highly detailed decorations with CNC-level accuracy, synchronized motion control and outstanding repeatability.

What capacity does the Multi-Color Moulding Line reach?

The line runs 6 to 8 moulds per minute on standard mould sizes of 470×200×30, 600×205×30 and 800×245×30 mm — decorating and backing off in one continuous flow through the standard process stations.

Can the line also produce filled or biscuit products?

Yes. Optional stations extend the line: an additional 3D figure depositor with vibration and horizontal cooling tunnel, a one-shot depositor with vibration, a biscuit feeding system with pressing unit, and a stick feeding unit.
