Continuous System Chocolines

Name: Continuous System Chocolines
Brand: Alpy Group

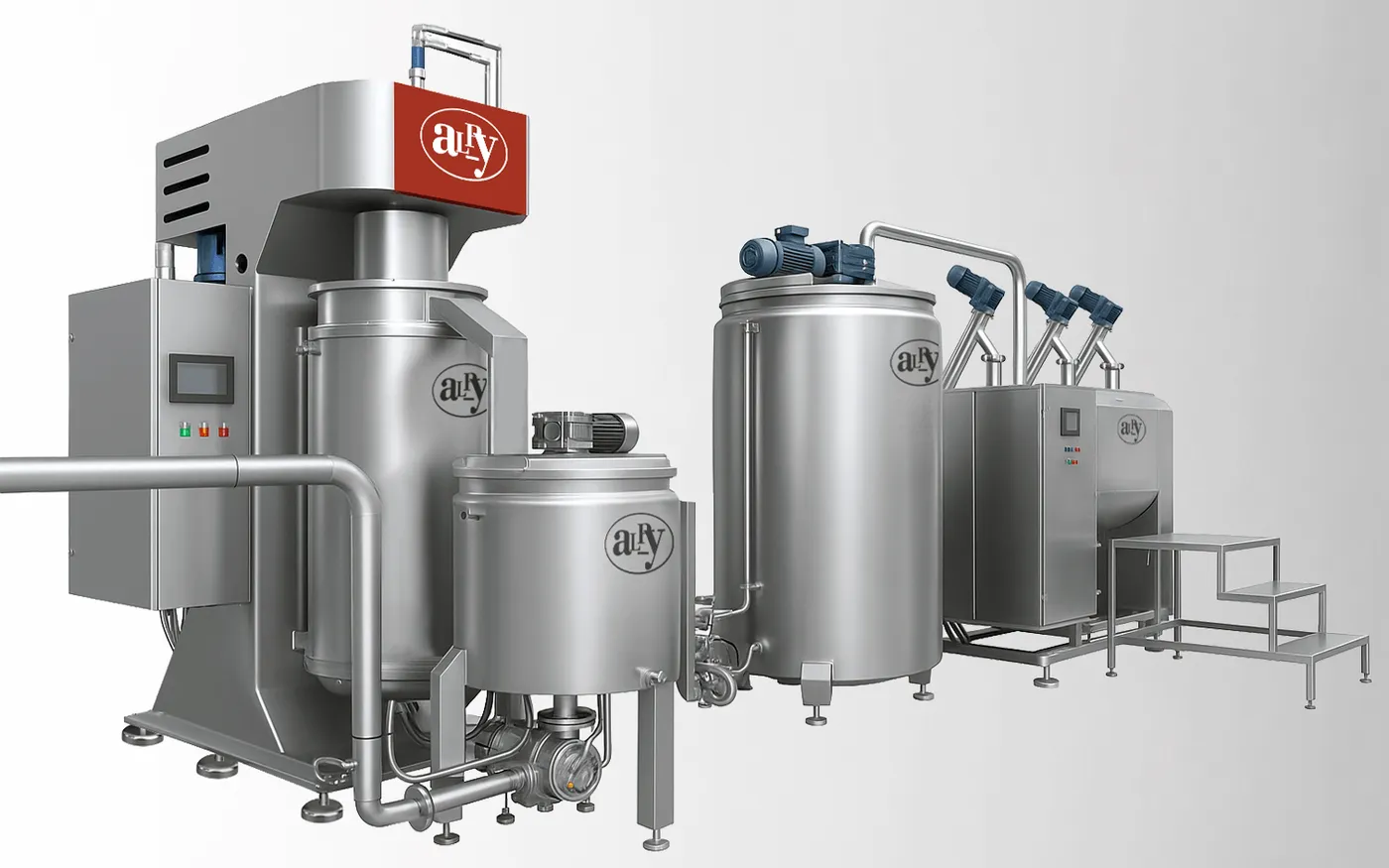

ALPY Continuous Chocolines are complete chocolate refining systems comprising a Preparation Mixer, a Service Tank, and a Conti Ball Mill, ensuring continuous, efficient, and consistent chocolate production (powder-sugar-based products).

Specifications

Model	Capacity	Note
Chocoline 500/P	400–500 kg/h	AOK-500 mixer, AST-1000 tank, ACB-500 mill
Chocoline 1000/P	650–800 kg/h	AOK-1000 mixer, AST-2000 tank, ACB-1000 mill
Inline Chocoline 1500/P	1300–1600 kg/h	2× ACB-1000 mills + AEX-1500 heat exchanger

Models

Model	Capacity	Line configuration
Continuous Chocoline 500/P	400–500 kg/h	AOK-500 Preparation Mixer, AST-1000 Service Tank, ACB-500 Conti Ball Mill
Continuous Chocoline 1000/P	650–800 kg/h	AOK-1000 Preparation Mixer, AST-2000 Service Tank, ACB-1000 Conti Ball Mill

Automation options

Add a loadcell group and powder raw material feeding bunkers to the preparation mixer, and ingredient dosing becomes automated and weighed to specification — repeatable recipes without an operator on a scale.

Inline Chocoline

Add a second Conti Ball Mill in series with the first and you double the refining capacity. A heat exchanger sits between the two mills to pull the product temperature back down, so the extra grinding step doesn’t let it climb.

Model	Capacity	Line configuration
Inline Chocoline 1500/P	1300–1600 kg/h	AOK-1000 Preparation Mixer, AST-2000 Service Tank, ACB-1000 Conti Ball Mill 1, AEX-1500 Heat Exchanger, ACB-1000 Conti Ball Mill 2

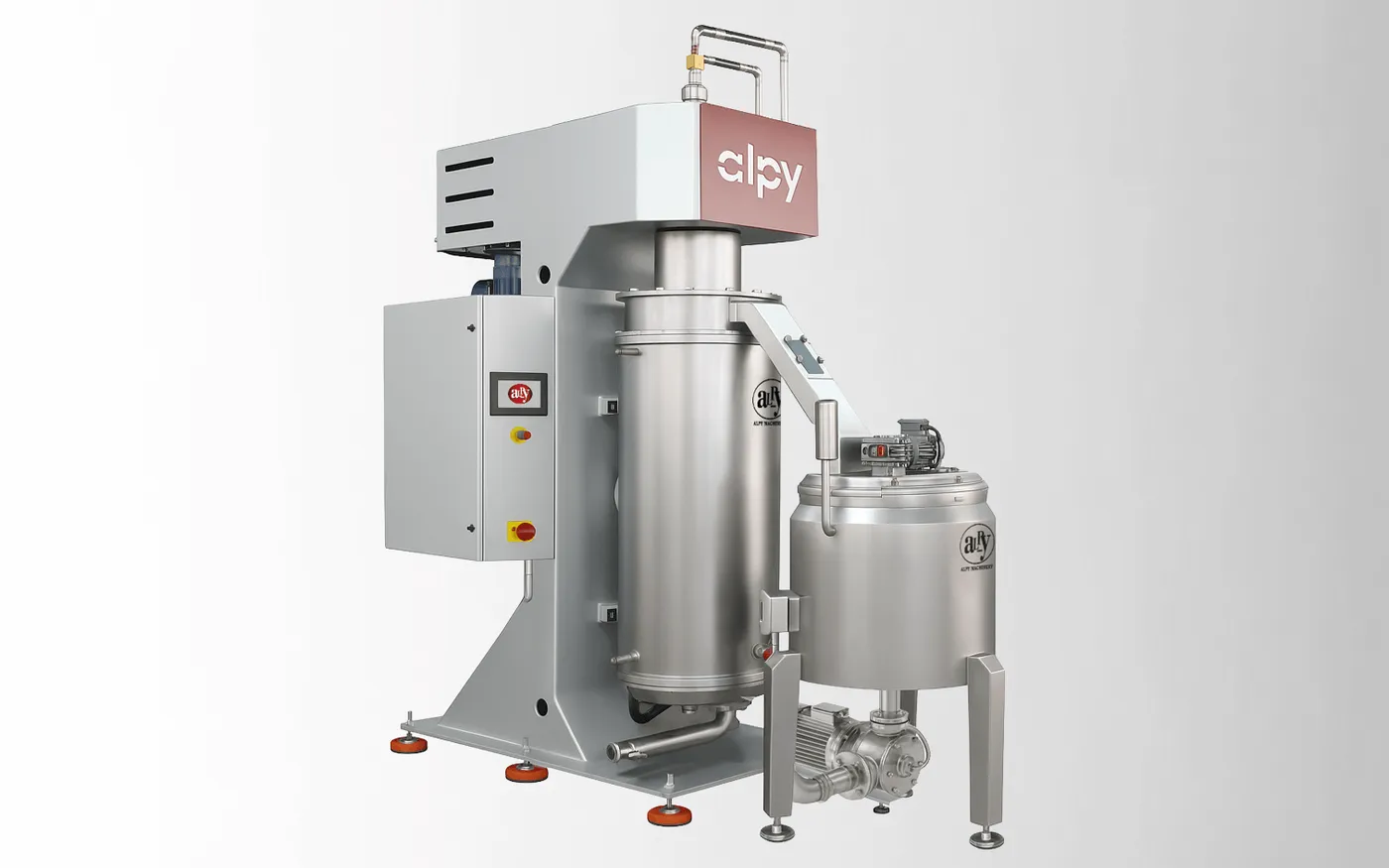

If you already own a working mixer or tankage and only need the refiner, buy the Conti Ball Mill on its own. Otherwise, tell us your daily production target and we will size the system, including the automation options worth having at your scale.

Discuss a Chocoline for your plant

Frequently Asked Questions

What machines are included in a Chocoline?

Each Chocoline integrates a preparation mixer, a service tank and a Conti Ball Mill with a 200-litre pre-stock tank into one engineered line, sized to work together so there are no integration surprises or mismatched capacities.

What are the model capacities and configurations?

The Chocoline 500/P delivers 400 to 500 kg/h with an AOK-500 mixer, AST-1000 service tank and ACB-500 mill; the Chocoline 1000/P delivers 650 to 800 kg/h with an AOK-1000 mixer, AST-2000 tank and ACB-1000 mill. For higher output, the Inline Chocoline 1500/P reaches 1,300 to 1,600 kg/h by running two ACB-1000 mills in series with an AEX-1500 heat exchanger between them.

Can ingredient dosing be automated?

Yes. Adding a loadcell group and powder raw material feeding bunkers to the preparation mixer makes dosing automated and weighed to specification, giving repeatable recipes without an operator on a scale.
