Spinner Moulding Line

The ALPY Spinner Hollow Chocolate Moulding Line is specifically engineered for the production of high-quality hollow chocolate products.

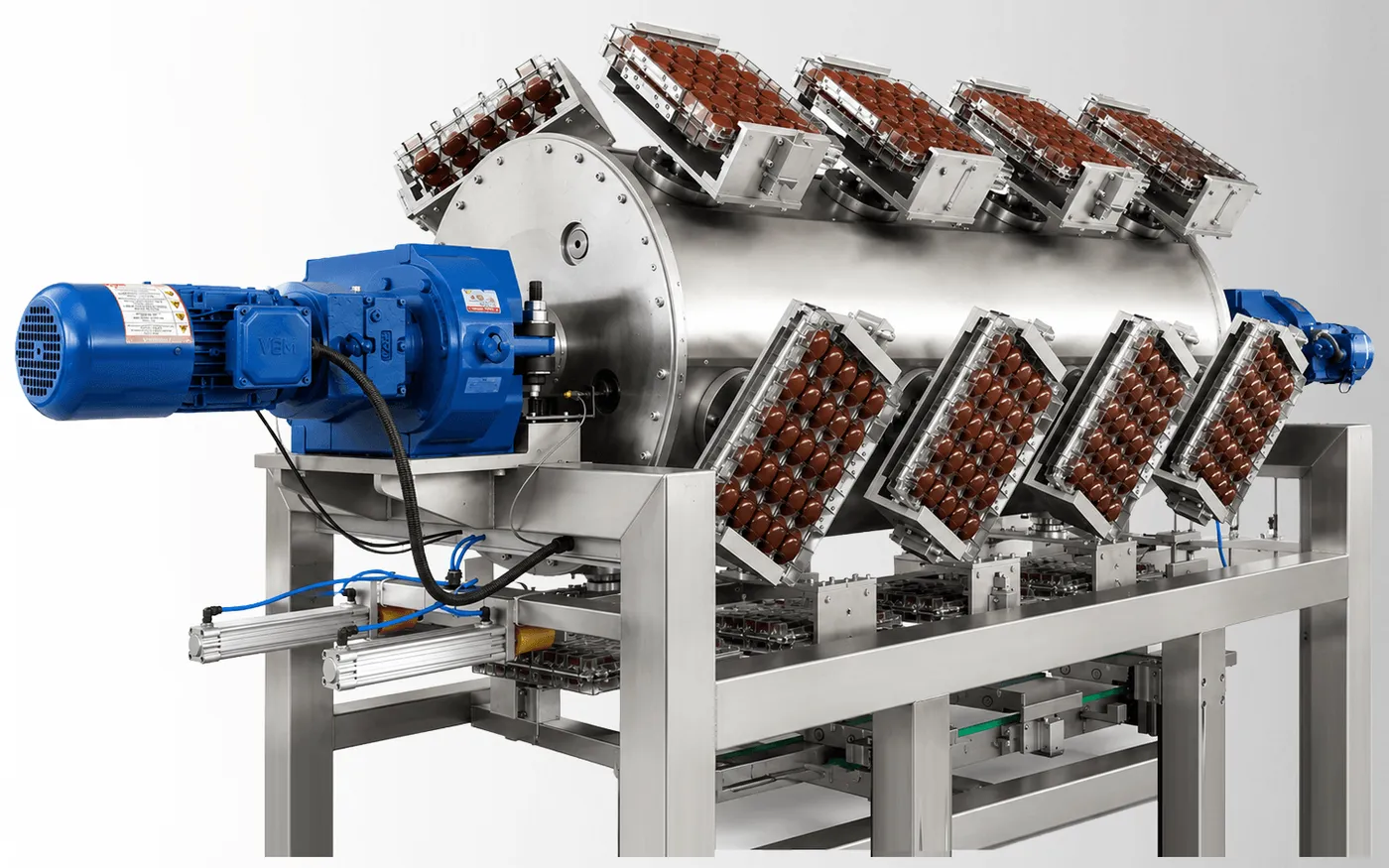

Spinner Moulding Line — image 1

Specifications

Model Capacity Note
Spinner — 1×holder 4–5 moulds/min 1 mould per holder
Spinner — 2×holder 8–10 moulds/min 2 moulds per holder

For enhanced product flexibility, the line can optionally be equipped with a 3D Axis Depositor, enabling the production of two-color and multi-color hollow chocolates with highly detailed decorative effects.

The system is available in two different configurations:

  • 1 mould per holder
  • 2 moulds per holder

A vibration system built into the spinning unit spreads the chocolate evenly, so the walls come out an even thickness with a smooth surface.

Production Capacity

  • 4–5 moulds/minute (1 mould per holder configuration)
  • 8–10 moulds/minute (2 moulds per holder configuration)

Standard Process Stations

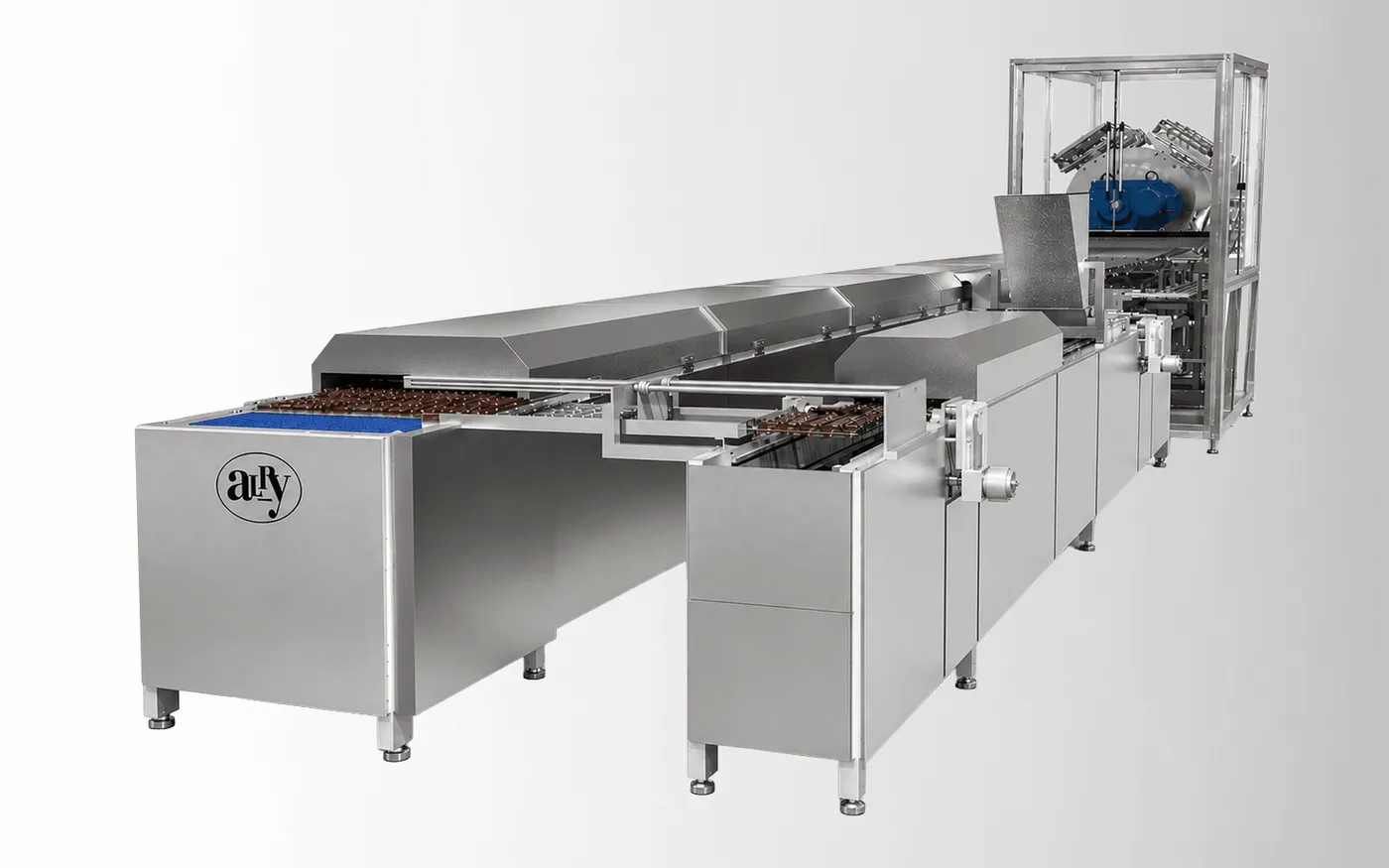

The Spinner Hollow Chocolate Moulding Line, configured with its standard process stations, includes the following units:

  • Mould Heating Tunnel

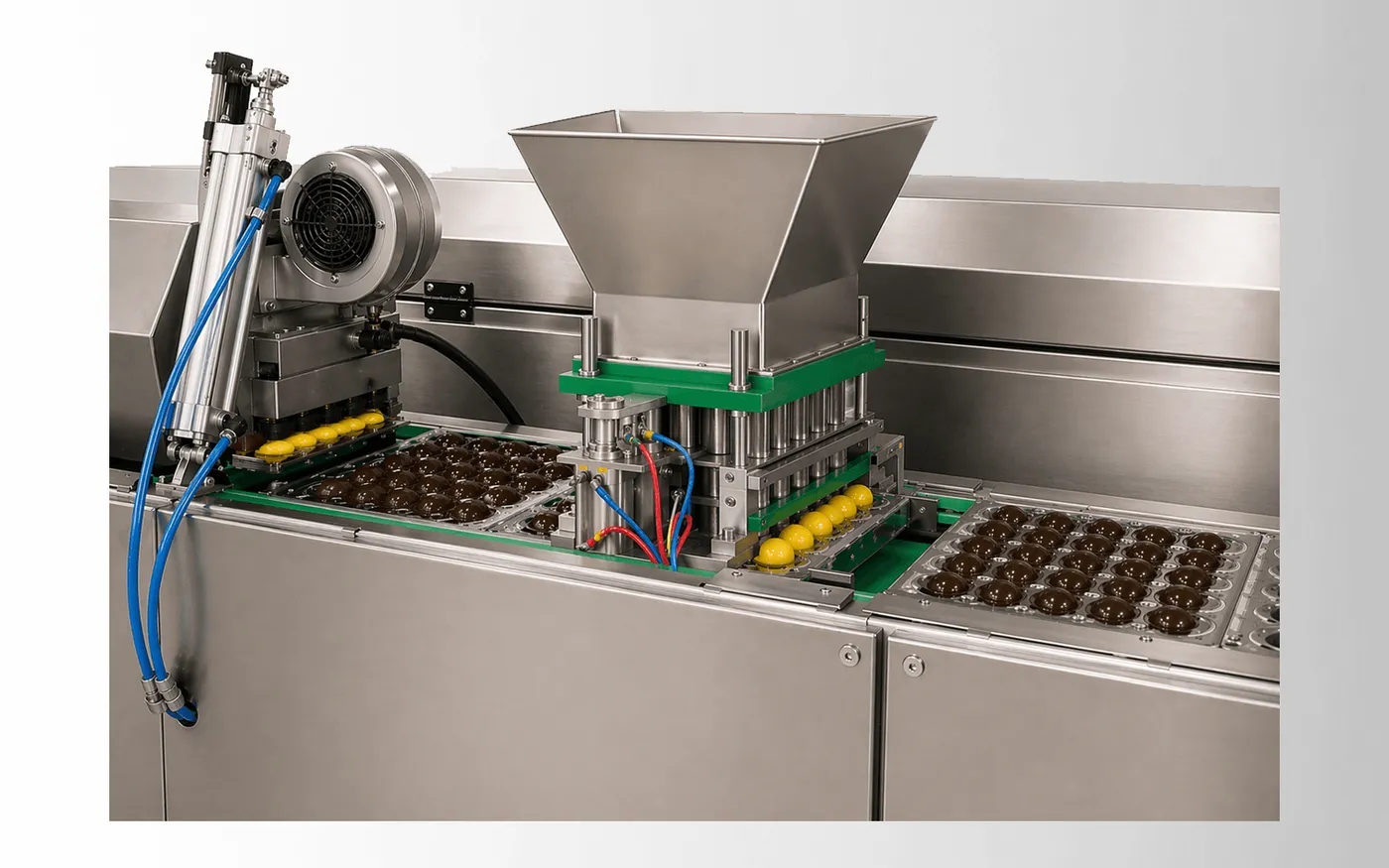

  • Chocolate Depositor with Vibration
  • Mould Closing Unit
  • Mould Inverting Unit

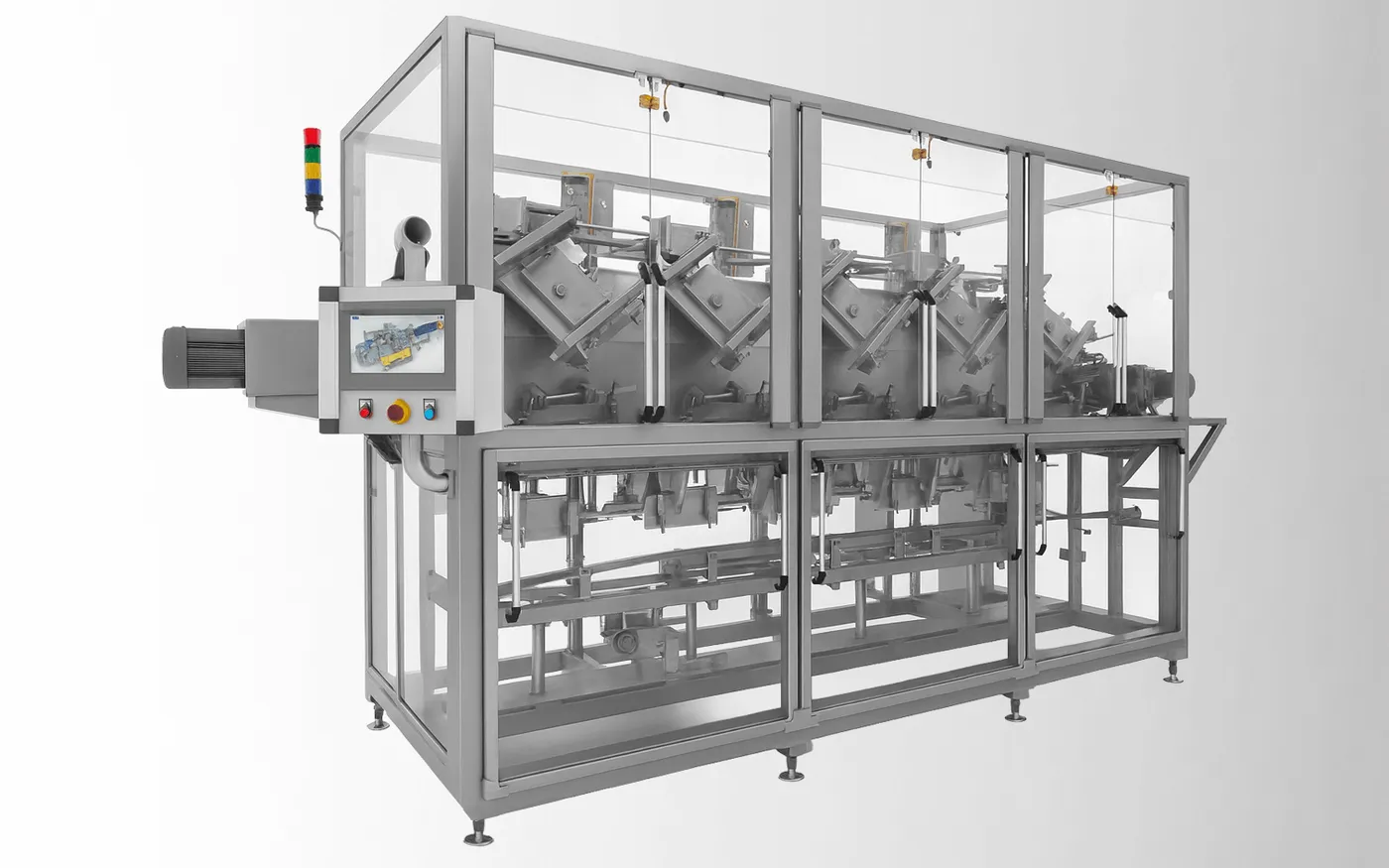

  • Spinner Unit
  • Cooling Tunnel Feeding System
  • Cooling Tunnel Transfer System
  • Mould Opening Unit
  • Vacuum Demoulding Unit

Optional Process Stations

The following optional process stations can be integrated into the Spinner Hollow Chocolate Moulding Line to meet specific production requirements:

  • 3D Axis Depositor with Horizontal Cooling Tunnel
  • Automatic Toy Capsule Feeding Unit
  • Additional Mould Opening & Closing Units

Discuss hollow chocolate production

Frequently Asked Questions

How does the spinner line keep hollow wall thickness even?
Filled, closed moulds rotate through the spinner group while a special vibration process distributes the chocolate, producing uniform wall thickness across every product for predictable weight and strength in packing and transit.
What output configurations are available?
A single-mould holder runs 4–5 moulds per minute and a dual-mould holder runs 8–10 moulds per minute, roughly doubling output with no additional floor space — worth specifying up front if seasonal peaks drive your business.
Can it produce multi-colour 3D figures, and how are pieces demoulded?
Yes. Optional 3D figure depositors let the line deposit detail and colour panels before the shell is spun, producing figures in two or more colours. Demoulding is vacuum-assisted so spun hollow products are not broken at unloading.
